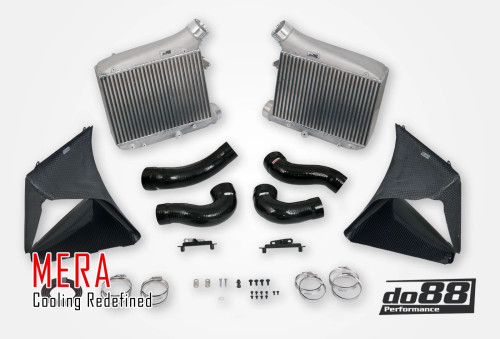

do88 Performance Intercooler Kit (MERA) – Audi RS6 / RS7 C8 4.0 TFSI

Vehicle Fitment

Audi RS6 (C8) 2020 onwards – Engine: 4.0 V8 TFSI
Audi RS7 (C8) 2020 onwards – Engine: 4.0 V8 TFSI

Upgrade the performance of your Audi RS6 / RS7 C8 with the do88 Performance Intercooler Kit. The already efficient twin intercooler system for the dual-turbo V8 is further refined by do88 for more cooling, better airflow, and stronger repeatable performance.

Overview

Designed as direct OE replacements, this kit uses 105 mm Garrett Motorsport cores and maximises every available millimetre of space behind the bumper and wheel arches. The result is a major reduction in intake air temperatures and restriction, supporting everything from stock boost to heavily tuned setups.

The intercooler cores are designed to do88 specifications and manufactured by Garrett Motorsport using advanced aerospace manufacturing methods. Densely packed thin cooling fins provide extremely efficient heat transfer for consistent performance—especially under sustained load and track conditions.

Airflow and End Tank Design

do88’s free-form cast end tanks are engineered to distribute airflow evenly across the core. Extensive development using CFD analysis, 3D-printed prototypes, and flow bench testing led to an optimised design for maximum airflow and efficiency.

A key improvement is the larger hose connections:

70 mm (2 ¾”) connections vs OEM 60 mm (2 3/8”)
That’s a 37% increase in diameter, reducing a major restriction point and improving turbo efficiency at higher power levels.

Carbon Fibre Ambient Air Guides

Included are premium carbon fibre ambient air guides (vacuum-infused prepreg carbon fibre, twill 2×2 mm). These mount securely with four screws and ensure the larger core surface receives consistent cool airflow.

MERA Range

This intercooler kit is part of the do88 MERA range.

MERA = more cooling, better airflow, more performance.

Installation and Build Quality

The kit includes silicone hoses designed for the larger connections and to mate cleanly to the OE charge pipes. Intercooler welding is carried out in-house at do88 in Sweden to ensure consistent quality.
Easy installation with no modifications required.

Features / Key Specs

Core volume: +50% (10,063 cm³ vs OEM 6,689 cm³)
Active cooling area: +29% (958 cm² vs OEM 743 cm²)
Hose connections: +37% (Ø70 mm / 2 ¾” vs OEM Ø60 mm / 2 3/8”)
Lower inlet air temperatures (IAT): 27 °C lower than OEM under identical conditions (see product diagrams for exact test data)
Improved airflow / lower pressure drop: @ 0.125 bar / 1.81 psi pressure drop
- 422 CFM (OEM 363 CFM) = +16% (see product diagrams for precise values)
High-density motorsport-grade Bar & Plate core from Garrett
Custom carbon fibre ambient air guides
Free-form, 3D-designed cast end tanks
Direct fitment, no cutting or modification required

Fitting Instructions

ICM-500 Fitting Instructions

Cross Reference (OE Part Numbers – reference only)

4K0145805P, 4K8121333K, 4K8121705, 4K0145709R, 4K0145737AC, 4K0145318B, 4K0145806B, 4K8121334K, 4K8121706, 4K0145708A, 4K0145738AC, 4K0145268B

do88 References

DO88ICM-500
ICM500
ICM-500
