Racingline DSG Billet Oil Feed Tube Kit - DQ381 / DQ500 - Golf 7/8 GTI R, Audi S3 / RS3 / TT, Leon, Octavia
Racingline Performance
- SKU:
- VWR040302
- Type:
- DSG Oil Feed Tube Kit
Need Some Advice? Speak to one of our experts.

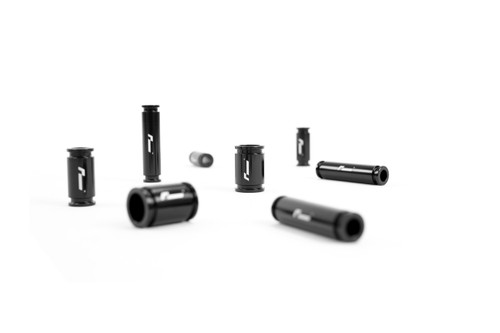

A kit of Racingline billet aluminium oil feed tubes for the DQ381 and DQ500 DSG gearboxes. It replaces the factory plastic oil transfer tubes, which can become brittle and often crack or split during gearbox work such as mechatronics replacement.
Features
- CNC constructed from T6-6061 aircraft grade aluminium for unrestricted oil transfer
- Billet tubes made to withstand high temperatures and the higher clutch pressures of tuned cars
- Anodised gloss black
- Kit includes high-temperature Viton o-rings
- Well timed with mechatronics, clutch or differential work, when the plastic tubes are most likely to break
Specifications
- Part number: VWR040302
- Kit contents: 3 x 53mm tubes, 2 x 33mm tubes, 1 x 31mm tube, 2 x 28mm tubes, 16 assorted Viton o-rings
Fitment
- DQ381 and DQ500 DSG gearboxes in:
- VW Golf 8 and 8.5 GTI, GTI Clubsport and R; Golf 7 and 7.5 R, GTI and Clubsport; Passat B8 2.0 TSI; Arteon; T-Roc; Tiguan II; Jetta / GLI 7
- Audi S3 8Y, S3 and A3 8V, RS3 8Y and 8V, TT 8S, TTRS 8S, SQ2, RSQ3 F3
- SEAT Leon 4 and 4.5 FW, Leon III 5F, Cupra Formentor, Cupra Ateca, SEAT Tarraco
- Skoda Octavia IV NX (including vRS), Octavia III 5E, Superb III 3V, Karoq
Before you order
Contact us with your registration or VIN and we will confirm fitment before you order. Check your gearbox code (DQ381 or DQ500), and send us your registration or VIN if unsure.
