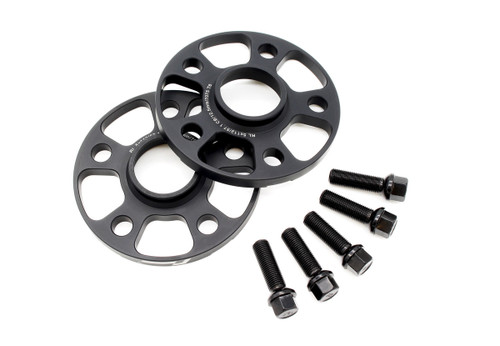

Racingline Wheel Spacers & Ball Seat Bolt Kit (Pair) - VW, Audi, SEAT, Skoda 5x112 MQB / MQB Evo
Racingline Performance
- SKU:
- VWR6400XX
- Type:
- Wheel Spacers
Need Some Advice? Speak to one of our experts.
Racingline Wheel Spacers and Bolt Kits move the wheels further out for a flush stance, more track width and extra clearance over bigger calipers or coilovers. This listing is the ball seat (R13) bolt version, which suits most factory wheels. Sold as a pair with ten bolts.
Features
- 12.5mm, 15mm, 17.5mm and 20mm spacers are hubcentric, with an alloy spigot that keeps the 57.1mm centre bore
- The 5mm spacer cannot be hubcentric because it is so thin, but the hub spigot is deeper than the spacer so the wheel is still positively located
- Rear face cut-outs make removal easier after thousands of miles
- Longer bolts are included and must be fitted with the spacers
- Sold in pairs so front and rear widths can be mixed
Specifications
- Part numbers: VWR640005 (5mm), VWR640012 (12.5mm), VWR640015 (15mm), VWR640017 (17.5mm), VWR640020 (20mm)
- Material: heat-treated 7075-T6 aluminium, black anodised
- Bolts: ten M14x1.5 grade 12.9 carbon steel black bolts per pair, ball seat (R13)
- Spacer weight each: 5mm 179g, 12.5mm 275g, 15mm 340g, 17.5mm 390g, 20mm 440g
- Bolt length: 5mm 31mm, 12.5mm 37mm, 15mm 39mm, 17.5mm 42mm, 20mm 47mm
- PCD 5x112, centre bore 57.1mm
Fitment
- All MQB Evo, MQB and A5 platform cars with 5x112 PCD and 57.1mm centre bore, including:
- VW Golf 8 and 8.5, Golf 7 and 7.5, Golf 6, Golf 5
- VW Passat B8, Arteon, T-Roc, Tiguan II
- VW Scirocco, Jetta / GLI 5, 6 and 7
- Audi, SEAT and Skoda models on the same platforms
Before you order
Contact us with your registration or VIN and we will confirm fitment before you order. Ball seat bolts suit most factory wheels. Many aftermarket wheels need tapered (conical) seat bolts, which are a separate part number.
