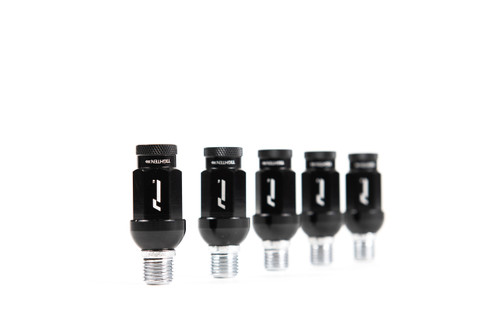

Racingline wheel stud and nut conversion kit
Racingline wheel stud and nut conversion kit
Racingline wheel stud and nut conversion kit

Racingline Wheel Stud and Nut Conversion Kit M14x1.5 - VW Golf 5, 6, 7, 8, Passat B8, Tiguan II, Scirocco

(No reviews yet) Write a Review
£157.25
SKU:
VWR63000X
Type:
Wheel Stud Conversion Kit

Need Some Advice? Speak to one of our experts.

0141 8824 669 come in store

The Racingline Stud and Nut Conversion Kit swaps the factory wheel bolts for M14 x 1.5 studs and lightweight anodised wheel nuts, which speeds up wheel changes for track and motorsport use. It comes with a choice of 70mm or 80mm studs and ball head or tapered nuts.

Features

  • Replaces the factory bolts, so wheels slide onto studs instead of being lined up against bolt holes
  • Stud lengths: 70mm for no spacers or spacers up to 10mm, 80mm for spacers up to 20mm
  • Ball head (OEM style) nuts suit factory wheels, tapered nuts suit most aftermarket wheels
  • Allen drive inserts for installation, and the studs can be removed again later
  • Knurled outer collar on the nuts for finger grip
  • Racingline offers a matching locking wheel nut kit as a separate item

Specifications

  • Part numbers: VWR630000 (ball head, 70mm), VWR630002 (ball head, 80mm), VWR630001 (tapered, 70mm), VWR630003 (tapered, 80mm)
  • Thread: M14 x 1.5, R13 seat
  • Studs: heat treated high carbon alloy steel, chrome plated, 6mm allen drive, 8mm unthreaded shank for brake disc clearance
  • Nuts: 7000-series aluminium, gloss anodised midnight black, 19mm oversize
  • 70mm stud: 13mm hub-side thread, 50mm nut-side thread. 80mm stud: 13mm hub-side thread, 60mm nut-side thread
  • Kit contents: 20 studs and 20 wheel nuts (full car set)

Fitment

  • Fitment is for cars with R13 wheel nut seats
  • VW Golf 8 and 8.5, 2020+
  • VW Golf 7 and 7.5, 2013-2020
  • VW Passat B8, 2015+
  • VW Arteon, 2017+
  • VW T-Roc, 2017+
  • VW Tiguan II, 2016+
  • VW Golf 5 (2005-2008) and Golf 6 (2008-2014)
  • VW Scirocco, 2008-2017
  • VW Jetta / GLI 5, 6 and 7

Before you order

Cars with R14 wheel nut seats need a different kit. Aluminium nuts should be cleaned with pH balanced cleaners only. Contact us with your registration or VIN and we will confirm fitment before you order.
